Perforated Stainless Steel Sheet
Your Professional Perforated Stainless Steel Sheet Supplier
Wuxi Hongcheng Metal Products Steel Co.,ltd is a manufacturer and exporter dedicated to stainless steel industry for decades.
Our main products are featuring stainless steel sheet, coil, bar, pipe, flat steel, square steel, angel steel, channel steel, hexagonal rod, etc.
-

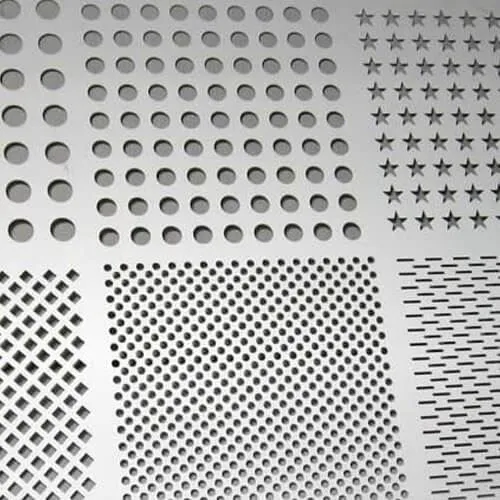

![6mm Perforated Stainless Steel Sheet]()
6mm Perforated Stainless Steel SheetThe yield strength of 2205 perforated sheet ss is more than double that of ordinary austenitic stainless steel. This feature allows designers to reduce weight when designing products, making this...read more
Why Choose us
Production Equipment
We are equipped with our own roll slitting machinery and shock wave devices. Should a customer require a coil weighing 4 tons, we are capable of performing the splitting process in-house. Additionally, we can accommodate other processing requirements as needed.
Strict Quality Inspection
A rigorous quality inspection process is implemented throughout all stages of production, from raw material procurement to final product delivery. Each stage undergoes meticulous examination to ensure compliance with national standards and industry specifications.
Perfect After-Sales Service
We provide comprehensive after-sales support, promptly addressing customer inquiries and feedback. Our team resolves any issues customers may encounter during product use, ensuring complete customer satisfaction and peace of mind.
Specification
|
Physical properties of perforated sheet ss 304 |
|
|
Tensile strength σb (MPa) |
≥515-1035 |
|
Conditional yield strength σ0.2 (MPa) |
≥205 |
|
Elongation δ5 (%) |
≥40 |
|
Area shrinkage ψ (%) |
- |
|
Hardness |
≤201HBW;≤92HRB;≤210HV |
|
Density (20℃, g/cm³) |
7.93 |
|
Melting point (℃) |
1398~1454 |
|
Specific heat capacity (0~100℃, KJ kg-1K-1) |
0.50 |
|
Thermal conductivity (W·m-1·K-1) |
(100℃) 16.3, (500℃) 21.5 |
|
Linear expansion coefficient (10-6·K-1) |
(0~100℃) 17.2, (0~500℃) 18.4 |
|
Resistivity (20℃, 10-6Ω·m2/m) |
0.73 |
|
Longitudinal elastic modulus (20℃, KN/mm2) |
193 |
|
316 Stainless Steel Perforated Sheet |
||||||
|
Carbon |
Silicon |
Manganese |
Phosphorus |
Sulphur |
Nickel |
Chromium |
|
≤0.08 |
≤1.00 |
2.00 |
≤0.035 |
≤0.03 |
10.00-14.00 |
16.00-18.50 |
Types of Perforated Stainless Steel Sheet
The perforated stainless steel sheet produced by our company mainly include the following types:
304 Stainless Steel Perforated Sheet
Introduction of 304 stainless steel is austenitic stainless steel, which is developed and evolved on the basis of the originally invented 18-8 type austenitic stainless steel. more than 30%. 06Cr19Ni10 is one of the most produced and used grades of austenitic stainless steel.
316 Stainless Steel Perforated Sheet
316 stainless steel has between 2% and 3% molybdenum and has a mid-range carbon content, increasing resistance to corrosion, acidic elements, and high temperatures. Both materials are extremely malleable, which means they bend, stretch, deep draw, and spin nicely.
6mm Perforated Stainless Steel Sheet
The yield strength of 2205 perforated sheet ss is more than double that of ordinary austenitic stainless steel. This feature allows designers to reduce weight when designing products, making this alloy more affordable than 316 and 317L.
Benefits of Perforated Stainless Steel Sheet
Corrosion Resistance: Stainless steel’s natural resistance to rust and corrosion makes it ideal for outdoor applications and harsh environments.
Strength and Durability: Despite the perforations, stainless steel retains its strength, making it suitable for structural applications.
Weight Reduction: Perforating the sheet reduces the weight while maintaining structural integrity, a crucial feature in industries where load-bearing capacity is important.
Customization and Design Flexibility: With options for laser cut perforated sheets, customization is easy, allowing industries to create the exact patterns and designs needed for specific functions.
Manufacturing Process of Perforated Stainless Steel Sheet
Laser Cutting Method
Sheet Preparation
Stainless steel sheets are cleaned and prepped to ensure a smooth cutting surface.
Laser Configuration
A high-precision laser is programmed with the exact cutting pattern required, based on CAD designs.
Laser Operation
The laser beam, directed by a CNC machine, cuts through the sheet with accuracy up to ±0.1 mm. This method is highly efficient for creating intricate patterns and custom perforated sheets.
Heat Dissipation
The process produces minimal heat-affected zones (HAZ), preventing distortion and maintaining material strength.
Finishing
The cut edges are typically smooth, requiring minimal finishing work. The sheets are inspected for uniformity and precision.
Sheet Alignment: Stainless steel sheets are placed onto the punch press bed and secured in position.
Die and Tool Setup: Pre-designed punch and die tools are aligned according to the required hole shape and size (e.g., round, square, slotted).
Punching Operation: The machine exerts mechanical force, punching through the sheet in a repetitive cycle. This method is faster than laser cutting, ideal for high-volume production.
Hole Formation: Holes are created with uniform spacing and size across the sheet, although it is less suitable for very intricate designs.
Post-Processing: After punching, the sheets may require deburring to smooth rough edges. Final inspection ensures consistent quality and durability.
Delivery Information
|
Shipping Port |
Usually, we ship from Shanghai, you can choose the destination port according to your needs. |
|
Delivery Terms |
EXW, FOB, CFR,CIF |
